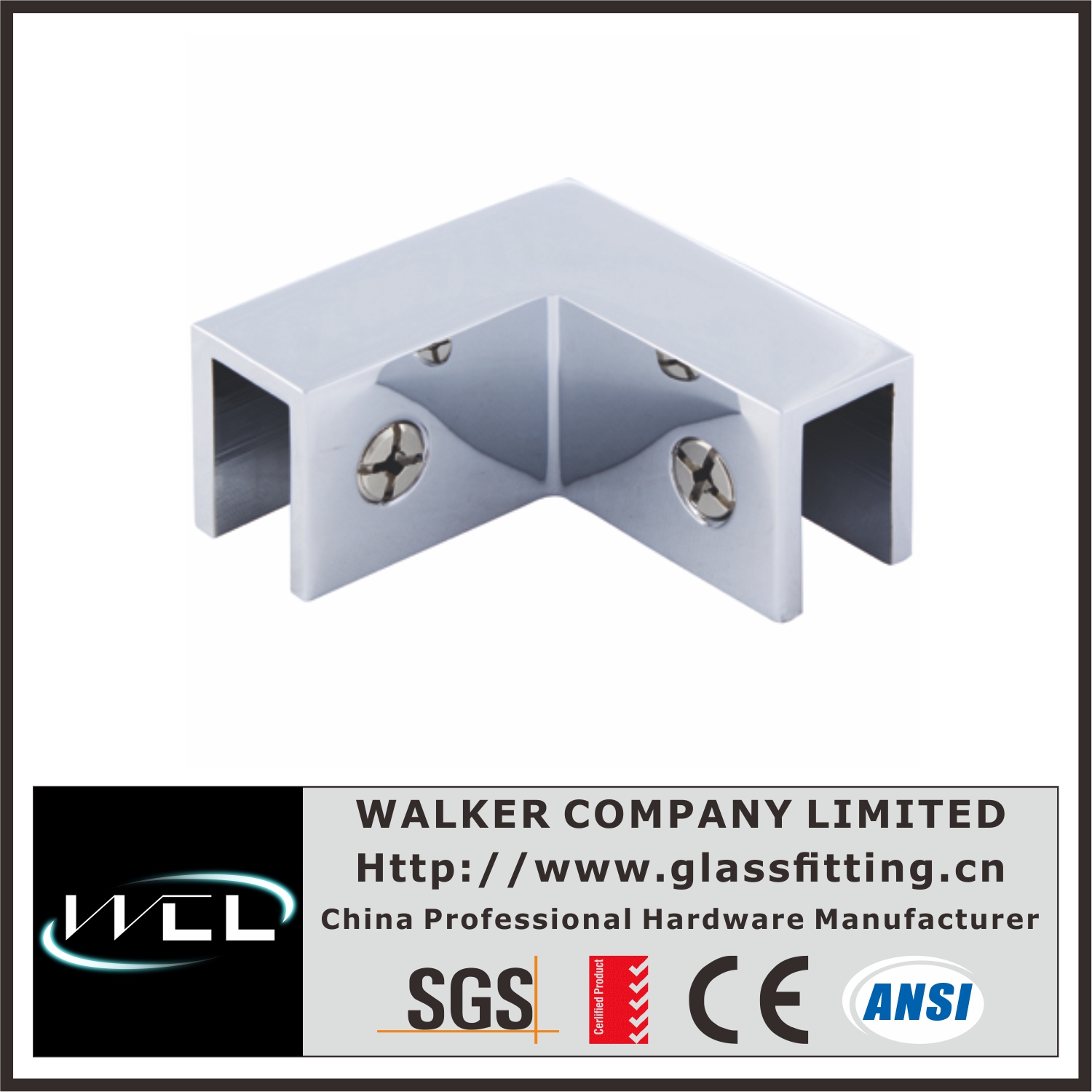

BC619 90 Degree Sleeve Over Glass Clamp
Model No.: BC619BC619 90 Degree Sleeve Over Glass Clamp, Available in Several Beautiful Finishes, Use Monolithic Tempered Glass, Three Year Warranty
| Material | 304 Grade Stainless Steel |
| Glass Thickness | 5/16" to 1/2" (8 to 12 mm) |
| Gasket | Black Rubber, Pvc, Asbestos is Available |
| Includes | Gasket |
| Glass | Use Monolithic Tempered Glass, No Glass Fabrication Required |
*Assists with Shear Forces
*Holds Glass Panels in Position While Sealant Cures
Walker Sleeve Over Glass Clamps are designed to provide a mechanical fastener to cover the shear forces placed on the glass panels.
No special fabrication of the glass is required.
Can also be used to secure the glass panels in position while the applied silicone sealant in the joint cures (the silicone sealant glues the glass panels together, prevents water leakage, and provides the pull strength to keep the panels from separating).
Clamps are secured in place by nylon tipped Allen set screws.
NOTE:
Clamps tighten using nylon tipped Allen screws. These Clamps are not designed to take the place of Headers or a Support Bar.
Custom Sizes or Finishes are Available on Request. Contact Walker Sales Department.
| Catalog Number | BC619 |
|---|---|
| Material | 304 Grade Stainless Steel |
| Color (Finish) | Chrome, Satin Nickel, Oil Rubbed Bronze and Gold |
| Size | 52*52mm |
| Package | Standard Export Package |
| Ship Via | Can ship DHL, By sea and By air |
| Testing | Salt fog resistance for surface >/= 48 hours |
| Minimum Order | 1 Each (Special color:200 Nos) |
