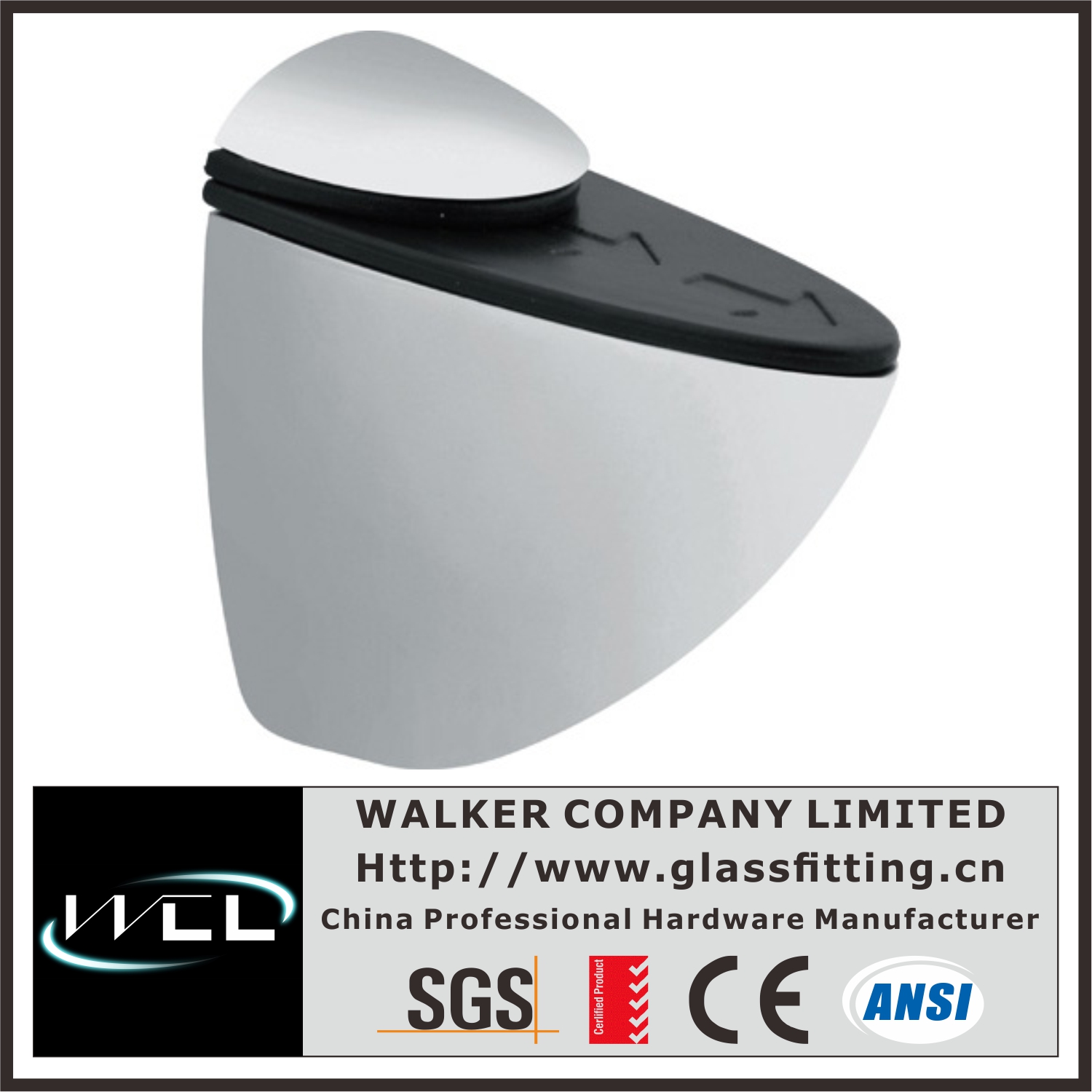

BC612 Walker Heavy Duty Adjustable Shelf Bracket
Model No.: BC612Heavy Duty Adjustable Shelf Bracket, Available in Several Beautiful Finishes, Use Monolithic Tempered Glass, Three Year Warranty
| Material | Zinc |
| Glass Thickness or Wood Shelves | 1/2" to 15/16" (12 to 24 mm) |
| Gasket | Black Rubber, Pvc, Asbestos is Available |
| Includes | Adjusting Screw, Mounting Screw, Foam Gasket |
| Glass | Use Monolithic Tempered Glass, No Glass Fabrication Required |
Walker Heavy-Duty Adjustable Shelf Clamps work with 1/2" to 15/16" (12 to 24 mm) thick glass or wood shelves up to 12" (305 mm) deep.
The Clamps are secured with one screw (included) to the substrate.
An adjustment screw is also included to accommodate various shelf glass thicknesses.
Maximum recommended weight for two each Heavy-Duty Clamps correctly installed is 50 pounds (23 kg).
Factory Standard Size:
| Size | L | W | H |
| BC612A | 76 | 30 | 67 |
| BC612B | 56 | 28 | 55 |
Custom Sizes or Finishes are Available on Request. Contact Walker Sales Department.
| Catalog Number | BC612 |
|---|---|
| Material | Zinc |
| Color (Finish) | Chrome, Satin Nickel, Oil Rubbed Bronze and Gold |
| Size | Factory Standard Size |
| Package | Standard Export Package |
| Ship Via | Can ship DHL, By sea and By air |
| Testing | Salt fog resistance for surface >/= 48 hours |
| Minimum Order | 1 Each (Special color:200 Nos) |
