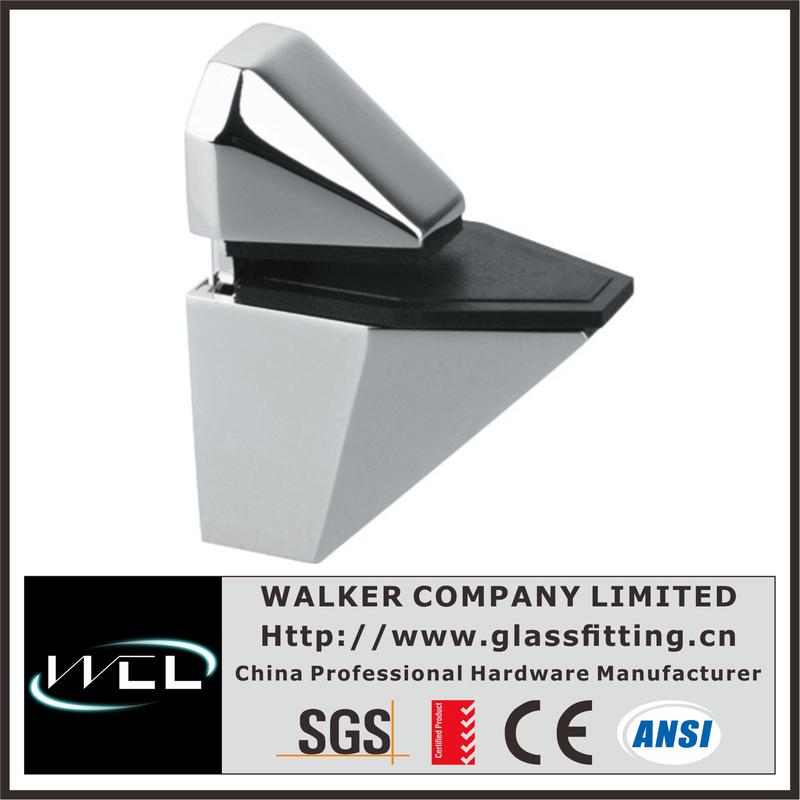

BC613 Walker Regular Adjustable Shelf Clamp
Model No.: BC613Regular Adjustable Shelf Clamp, Available in Several Beautiful Finishes, Use Monolithic Tempered Glass, Three Year Warranty
| Material | Zinc |
| Glass Thickness or Wood Shelves | 1/8" to 15/16" (3 to 24 mm) |
| Gasket | Black Rubber, Pvc, Asbestos is Available |
| Includes | Adjusting Screw, Mounting Screw, Foam Gasket |
| Glass | Use Monolithic Tempered Glass, No Glass Fabrication Required |
Walker Regular Size Adjustable Shelf Clamps are designed to work with 1/8" to 15/16" (3 to 24 mm) thick glass or wood shelves up to 10" (254 mm) deep.
The Clamps are secured with one screw (included) to the substrate.
An adjustment screw is also included to accommodate various shelf glass thicknesses.
Maximum recommended weight per pair of BC613 Regular Clamps when correctly installed is 44 pounds (20 kg).
Factory Standard Size:
| Size | L | W | H1 | H2 |
| BC613A | 40 | 21 | 26 | 16 |
| BC613B | 50 | 40 | 34 | 16 |
NOTE:
Maximum recommended weight for two each of BC612 Heavy-Duty Clamps correctly installed is 50 pounds (23 kg).
Custom Sizes or Finishes are Available on Request. Contact Walker Sales Department.
| Catalog Number | BC613 |
|---|---|
| Material | Zinc |
| Color (Finish) | Chrome, Satin Nickel, Oil Rubbed Bronze and Gold |
| Size | Factory Standard Size |
| Package | Standard Export Package |
| Ship Via | Can ship DHL, By sea and By air |
| Testing | Salt fog resistance for surface >/= 48 hours |
| Minimum Order | 1 Each (Special color:200 Nos) |
