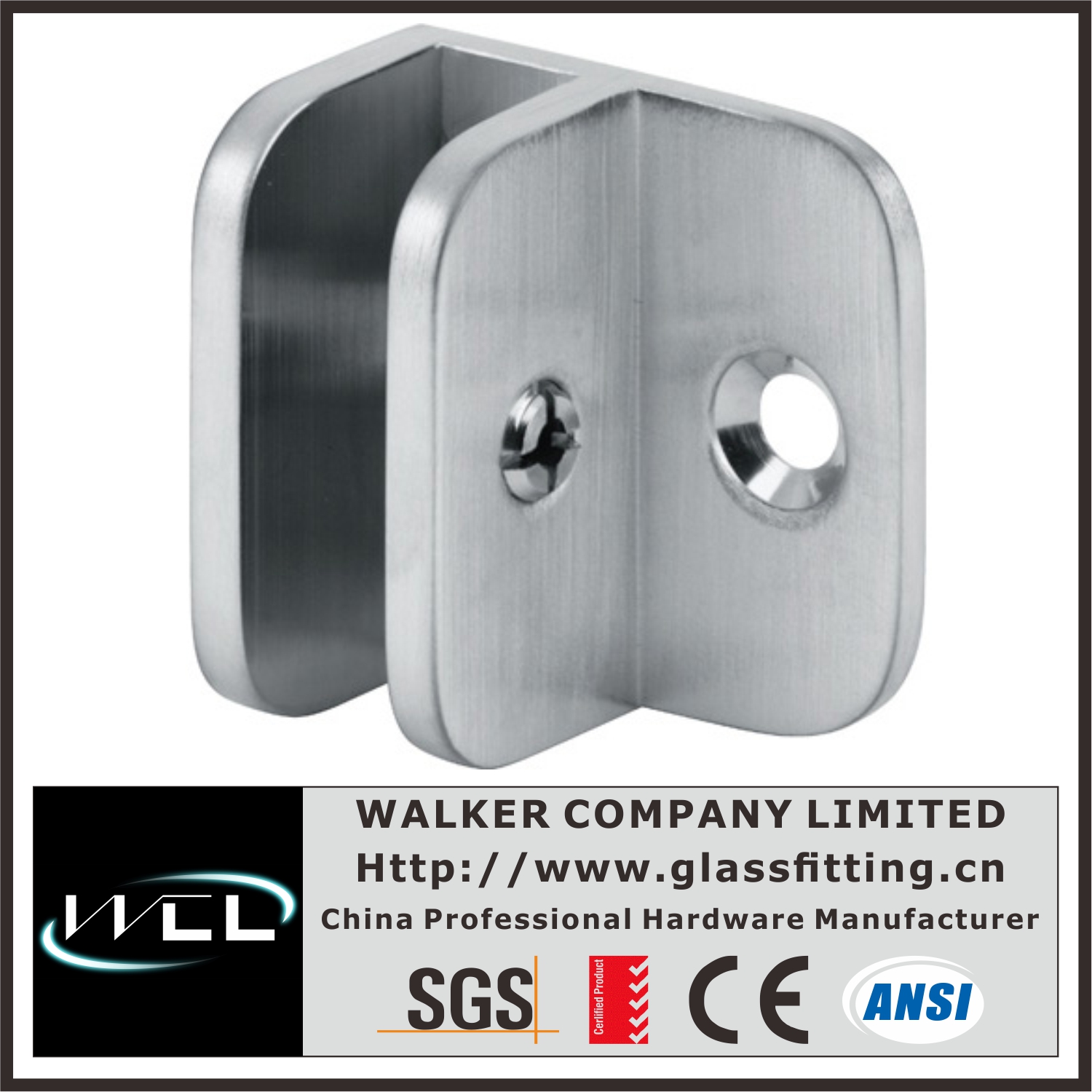

BC616 Walker Rounded Clamp with Horizontal Leg
Model No.: BC616Rounded Clamp with Horizontal Leg, Available in Several Beautiful Finishes, Use Monolithic Tempered Glass, Three Year Warranty
| Material | Brass |
| Glass Thickness | 5/16" to 3/8" (8 to 10 mm) |
| Gasket | Black Rubber, Pvc, Asbestos is Available |
| Includes | Gasket, Wall Mount Set Screws |
| Glass | Use Monolithic Tempered Glass, No Glass Fabrication Required |
The Preferred Clamp When Desired Mounting Point is Further From Edge of Wall or Tile
The Walker Rounded Clamp with Horizontal Leg is primarily used where the desired mounting point is further away from the edge of the tile or wall.
The rounded shape of the clamp is ideal for matching similar bathroom geometrical shapes.
The Rounded Clamp with Horizontal Leg is for use with 5/16" to 3/8" (8 to 10 mm) thick tempered glass.
Important Notes:
Do not hinge a door of a fixed panel using these Clamps.
Clamps must be used on minimum of three sides of fixed panel (top, bottom, and at least one side).
Silicone must be used for reinforcement along the entire edge of the glass where Clamps are used.
It is the responsibility of the installer to determine if adequate structural backing support is being used.
Custom Sizes or Finishes are Available on Request. Contact Walker Sales Department.
| Catalog Number | BC616 |
|---|---|
| Material | Brass |
| Color (Finish) | Chrome, Satin Nickel, Oil Rubbed Bronze and Gold |
| Size | 40*38*24mm |
| Package | Standard Export Package |
| Ship Via | Can ship DHL, By sea and By air |
| Testing | Salt fog resistance for surface >/= 48 hours |
| Minimum Order | 1 Each (Special color:200 Nos) |
