The Preferred Clamp When Desired Mounting Point is Further From Edge of Wall or Tile

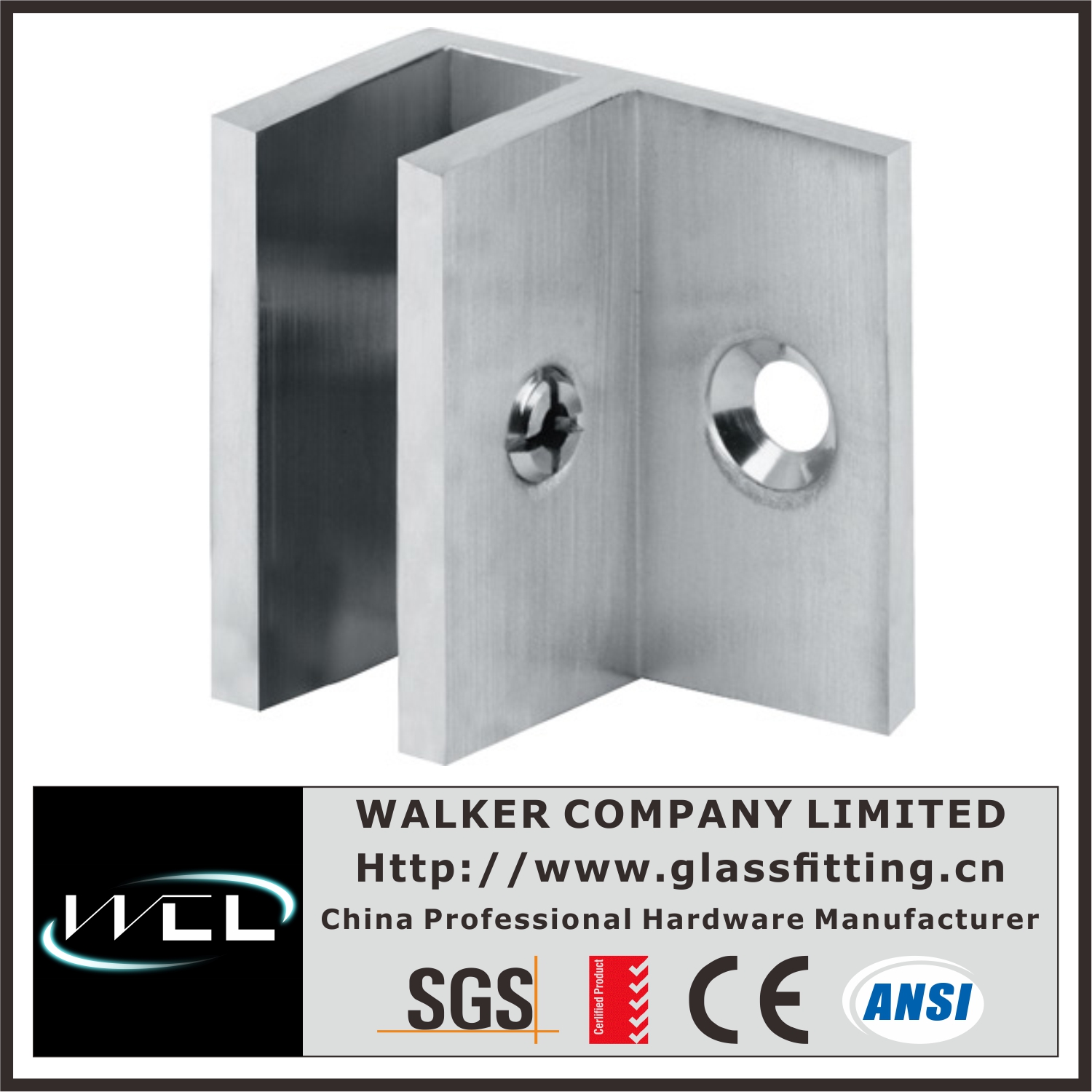

The Walker Square Clamp with Horizontal Leg is primarily used where the desired mounting point is further away from the edge of the tile or wall.
The square shape of the Clamp is ideal for matching popular Walker Hinge Series such as Hera, Muses and Graces.
The Square Clamp With Horizontal Leg is for use with 5/16" to 3/8" (8 to 10 mm) thick tempered glass.

Important Notes:

Do not hinge a door of a fixed panel using these Clamps.
Clamps must be used on minimum of three sides of fixed panel (top, bottom, and at least one side).
Silicone must be used for reinforcement along the entire edge of the glass where Clamps are used.
It is the responsibility of the installer to determine if adequate structural backing support is being used.

Custom Sizes or Finishes are Available on Request. Contact Walker Sales Department.
