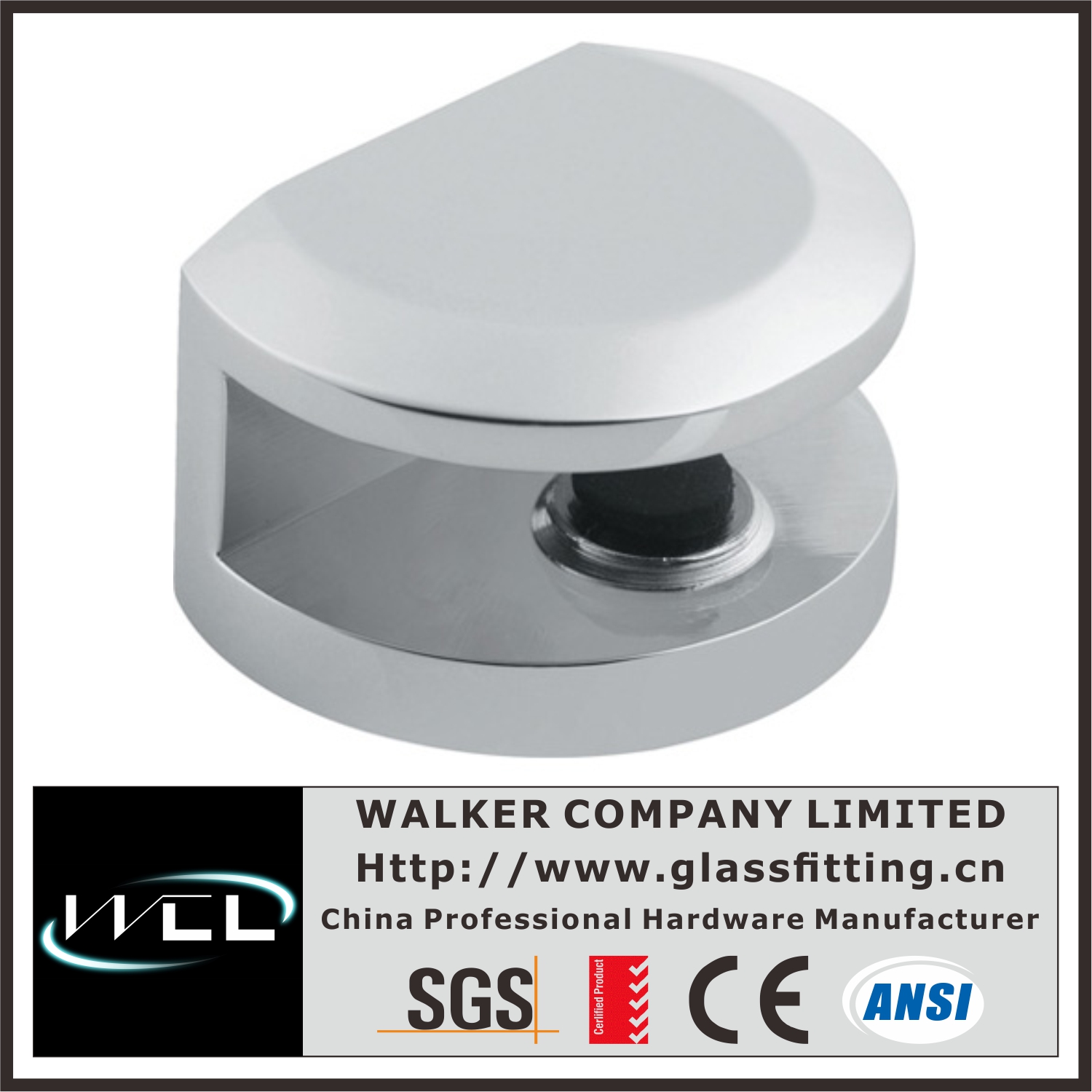

BC608 Walker Bevel Edge Rounded Interior Shower Shelf Clamp
Model No.: BC608Bevel Edge Rounded Interior Shower Shelf Clamp, Available in Several Beautiful Finishes, Use Monolithic Tempered Glass, Three Year Warranty
| Material | Brass |
| Glass Thickness | 1/4" to 3/8" (6 to 10 mm) |
| Gasket | Black Rubber, Pvc, Asbestos is Available |
| Includes | Gasket, Wall Mount Set Screws |
| Glass | Use Monolithic Tempered Glass, No Glass Fabrication Required |
Walker Solid Brass Shelf Clamps can be used to secure a shelf for lightweight articles.
Clamps should be secured to wall with screws (not included) in studs, or with Molly-type anchors.
Nylon tip brass set screws secure the glass. Clamps will hold 1/4" to 3/8" (6 to 10 mm) glass, with no glass fabrication required.
Maximum 5" (127 mm) glass protrusion from wall is recommended.
Factory Standard Size
| SIZE | H | W | D | L |
| BC608A | 38 | 50 | 24.5 | 13.5 |
| BC608B | 35 | 37.42 | 20.5 | 10.5 |
| BC608C | 28 | 28 | 18.5 | 8.5 |
| BC608D | 22 | 26.5 | 17.5 | 8.5 |
Custom Sizes or Finishes are Available on Request. Contact Walker Sales Department.
| Catalog Number | BC608 |
|---|---|
| Material | Brass |
| Color (Finish) | Chrome, Satin Nickel, Oil Rubbed Bronze and Gold |
| Size | Factory Standard Size |
| Package | Standard Export Package |
| Ship Via | Can ship DHL, By sea and By air |
| Testing | Salt fog resistance for surface >/= 48 hours |
| Minimum Order | 1 Each (Special color:200 Nos) |
