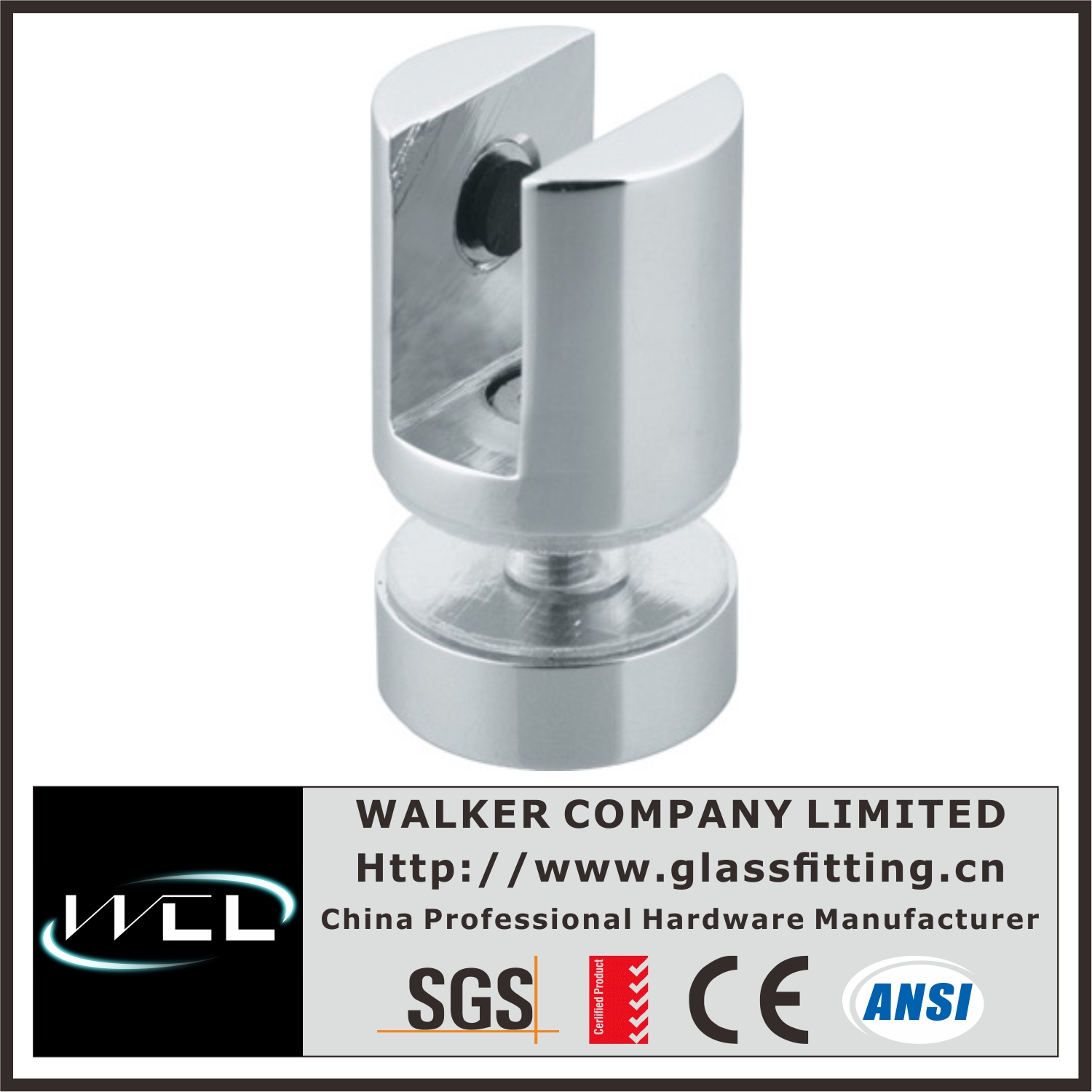

BC606 Walker Thru-Glass Cylindrical Shelf Clamp
Model No.: BC606Thru-Glass, Available in Several Beautiful Finishes, Use Monolithic Tempered Glass, Three Year Warranty
| Glass Thickness | 1/4" (6 mm) to 3/8" (10 mm) Tempered Safety Glass |
| Gasket | Black Rubber, Pvc, Asbestos is Available |
| Includes | Appropriate Mounting Screws and One set of Clear Gaskets |
These solid brass constructed Walker Thru-Glass Shelf Clamps can be used to secure lightweight articles, such as shampoo bottles.
Clamp requires a 1/2" (12 mm) hole in the glass.
Nylon tipped screws are used to support the glass.
Made of brass with all moving parts (pins and springs) in stainless steel.
Glass Fabrication Required.
NOTE:
Maximum 5" (127 mm) glass protrusion from the mounting surface is recommended. Clamps will hold 1/4" to 3/8" (6 to 10 mm) thick tempered glass.
Custom Sizes or Finishes are Available on Request. Contact Walker Sales Department.
| Catalog Number | BC606 |
|---|---|
| Material | Brass |
| Color (Finish) | Chrome, Satin Nickel, Oil Rubbed Bronze and Gold |
| Size | Dia25*26mm |
| Package | Standard Export Package |
| Ship Via | Can ship DHL, By sea and By air |
| Testing | Salt fog resistance for surface >/= 48 hours |
| Minimum Order | 1 Each (Special color:200 Nos) |
