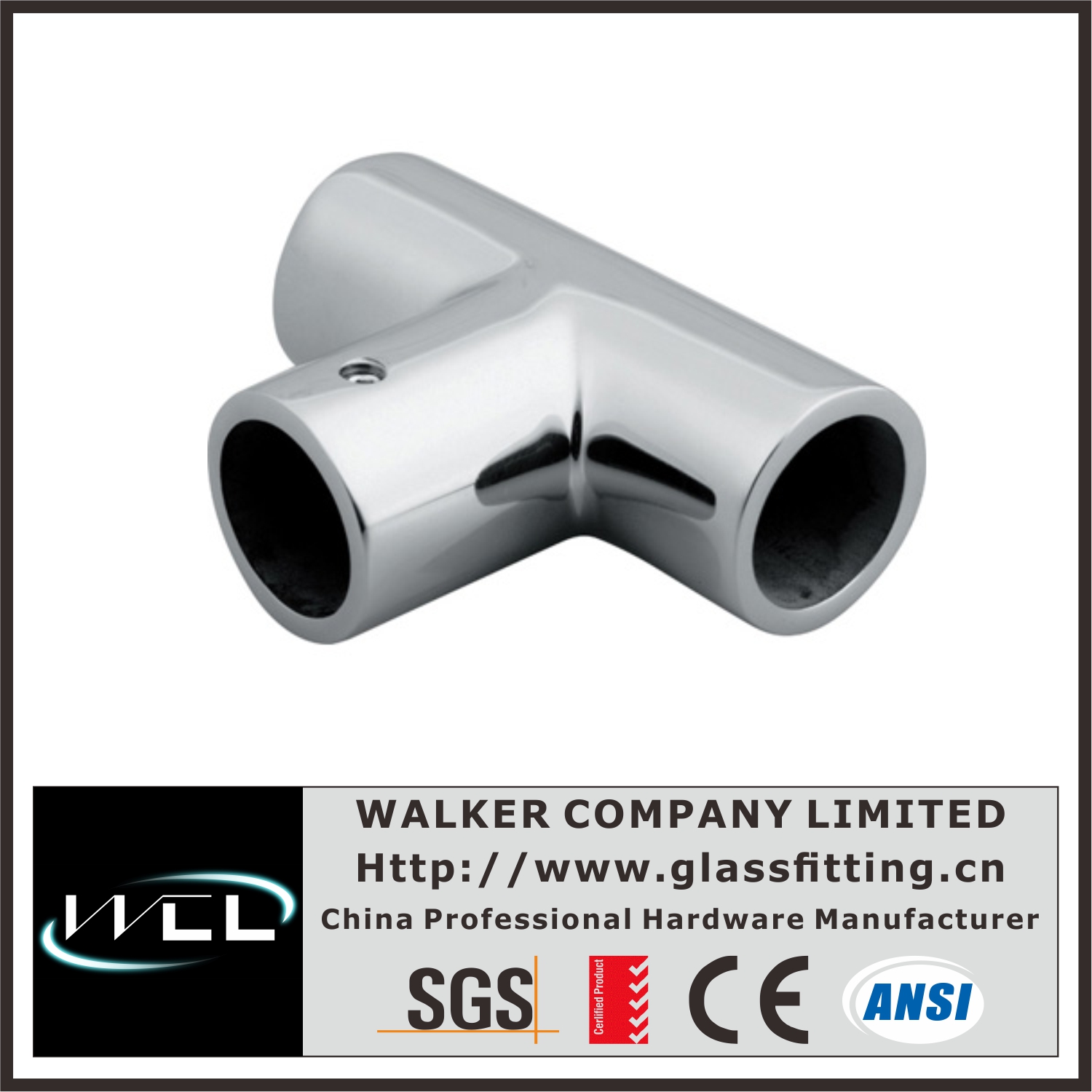

AC008 'T' Junction Bracket for Round Support Bar
Model No.: AC008'T' Junction Bracket for Round Support Bar, Available in Several Beautiful Finishes, Use Monolithic Tempered Glass, Three Year Warranty
| Material | 304 Grade Stainless Steel |
| Glass Thickness | 1/4" to 1/2" (6 to 12 mm) |
| Gasket | / |
| Includes | Set Screws |
| Glass | Use Monolithic Tempered Glass, No Glass Fabrication Required |
Allows Three-Way Connection
Provides Fixed Panel Support for Enclosures Not Going to the Ceiling
No Hole Drilling Required in Glass
Easy-to-Install
Use Monolithic Tempered Glass
Factory Standard Size:
| SIZE | A | B |
| AC008A | Dia19 | Dia27 |
| AC008B | Dia22 | Dia30 |
| AC008C | Dia25 | Dia32 |
Important Notes:
Our Walker Support Bar T-Bracket can be used to conveniently make a 3-way connection to support fixed panels of glass.
The three openings of the T-Bracket accept our Round Tube Support Bars.
Support Bar T-Brackets are available in many popular finishes to match most modern bathroom decors.
Custom finishes are available upon request.
Custom Sizes or Finishes are Available on Request. Contact Walker Sales Department.
| Catalog Number | AC008 |
|---|---|
| Material | 304 Grade Stainless Steel |
| Color (Finish) | Mirror, Satin Nickel, Matte Black and Gold |
| Size | Factory Standard Size |
| Package | Standard Export Package |
| Ship Via | Can ship DHL, By sea and By air |
| Testing | Salt fog resistance for surface >/= 48 hours |
| Minimum Order | 1 Each (Special color:200 Nos) |
