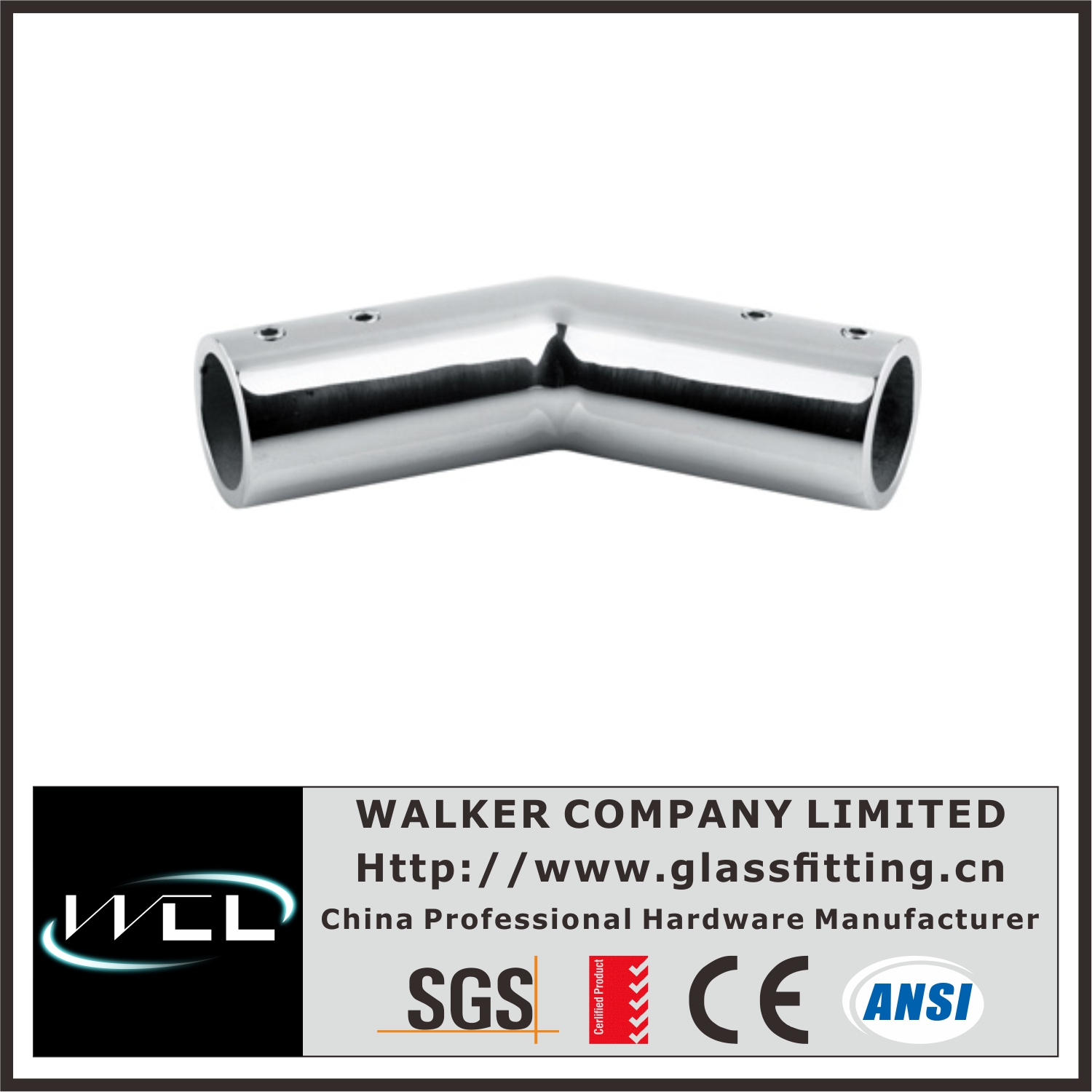

AC006 135 Degree Corner Bracket for Round Support Bar
Model No.: AC006135 Degree Corner Bracket for Round Support Bar, Available in Several Beautiful Finishes, Use Monolithic Tempered Glass, Three Year Warranty
| Material | 304 Grade Stainless Steel |
| Glass Thickness | 1/4" to 1/2" (6 to 12 mm) |
| Gasket | / |
| Includes | Set Screws |
| Glass | Use Monolithic Tempered Glass, No Glass Fabrication Required |
Easy-to-Install
Use Monolithic Tempered Glass
Available in Several Finishes
Factory Standard Size:
| SIZE | A | B | C |
| AC006A | Dia19 | Dia27 | 60 |
| AC006B | Dia22 | Dia28 | 60 |
| AC006C | Dia25 | Dia32 | 60 |
Important Notes:
This Walker Corner Bracket for Support Bars is used to connect two support bars together at 135 degrees.
Custom Sizes or Finishes are Available on Request. Contact Walker Sales Department.
| Catalog Number | AC006 |
|---|---|
| Material | 304 Grade Stainless Steel |
| Color (Finish) | Mirror, Satin Nickel, Matte Black and Gold |
| Size | Factory Standard Size |
| Package | Standard Export Package |
| Ship Via | Can ship DHL, By sea and By air |
| Testing | Salt fog resistance for surface >/= 48 hours |
| Minimum Order | 1 Each (Special color:200 Nos) |
