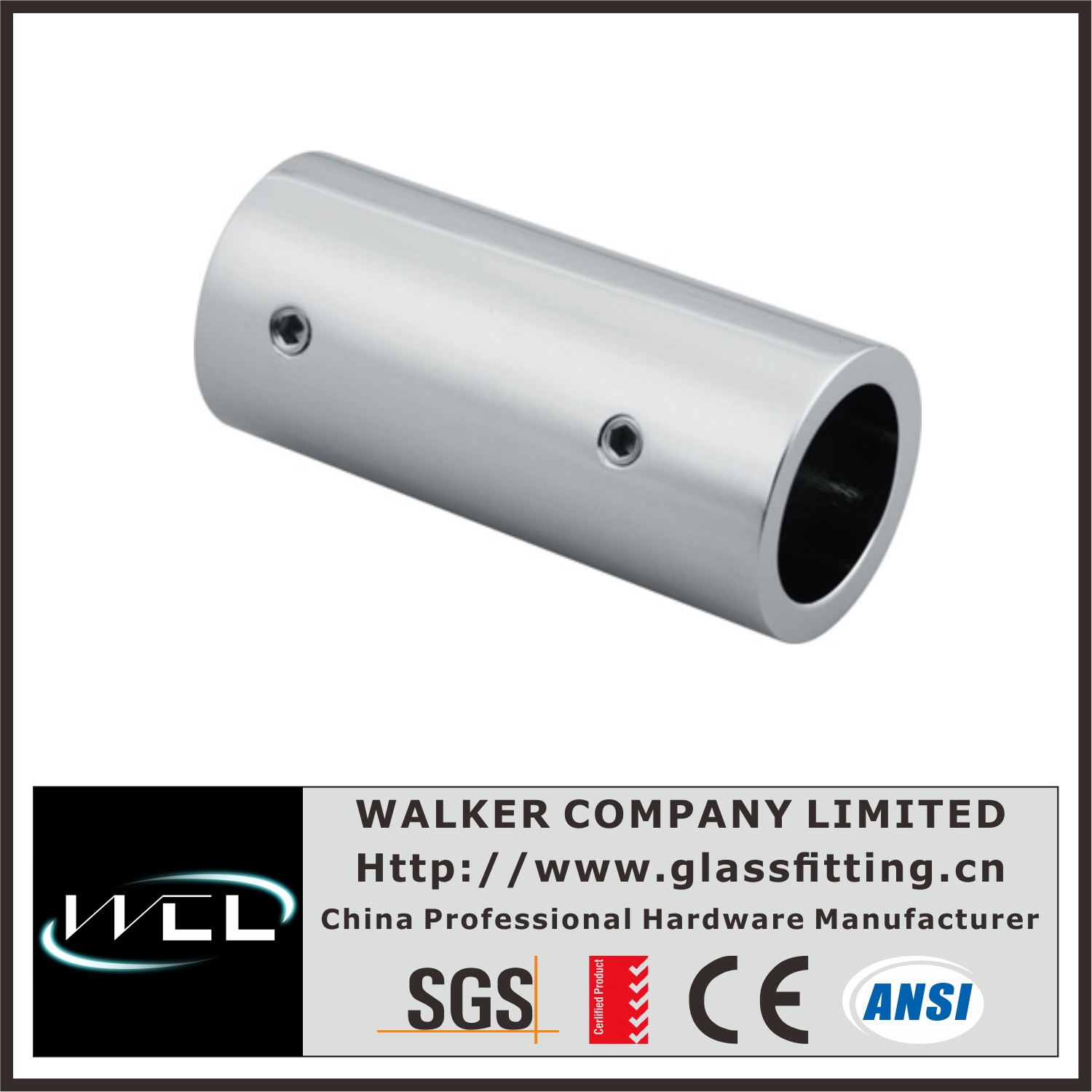

AC013 Slim Line Wall Mount Fitting
Model No.: AC013Slim Line Wall Mount Fitting, It Suitable for All Bars, Available in Several Beautiful Finishes, Use Monolithic Tempered Glass, Three Year Warranty
| Material | Brass |
| Glass Thickness | 1/4" to 1/2" (6 to 12 mm) |
| Gasket | / |
| Includes | Wall Mount Set Screws |
| Glass | Use Monolithic Tempered Glass, No Glass Fabrication Required |
This Slim Line Wall Mount Fitting has a streamlined profile which provides a pleasing appearance
It is designed to be used with our Round Tube Support Bars
Use Monolithic Tempered Glass
Fastens to Wall or Ceiling with Supplied Screw
Factory Standard Size:
| SIZE | A | B |
| AC013A | Dia19 | Dia27 |
| AC013B | Dia22 | Dia28 |
| AC013C | Dia25 | Dia32 |
Important Notes:
This Walker Slim Line Wall Mount Bracket is designed to be compatible with all of our Wall-to-Glass or Glass-to-Glass Bars.
The only variable would be the U-Bracket, which is dependent upon whether you are using the U-Bracket for 1/4" to 5/16" (6 to 7 mm) glass or the U-Bracket for 3/8" to 1/2" (10 to 12 mm) glass.
These Slim Line Wall Mount Brackets are available in all the standard designer finishes to match other Shower Door Hardware.
Custom Sizes or Finishes are Available on Request. Contact Walker Sales Department.
| Catalog Number | AC013 |
|---|---|
| Material | Brass |
| Color (Finish) | Mirror, Satin Nickel, Matte Black and Gold |
| Size | Factory Standard Size |
| Package | Standard Export Package |
| Ship Via | Can ship DHL, By sea and By air |
| Testing | Salt fog resistance for surface >/= 48 hours |
| Minimum Order | 1 Each (Special color:200 Nos) |
