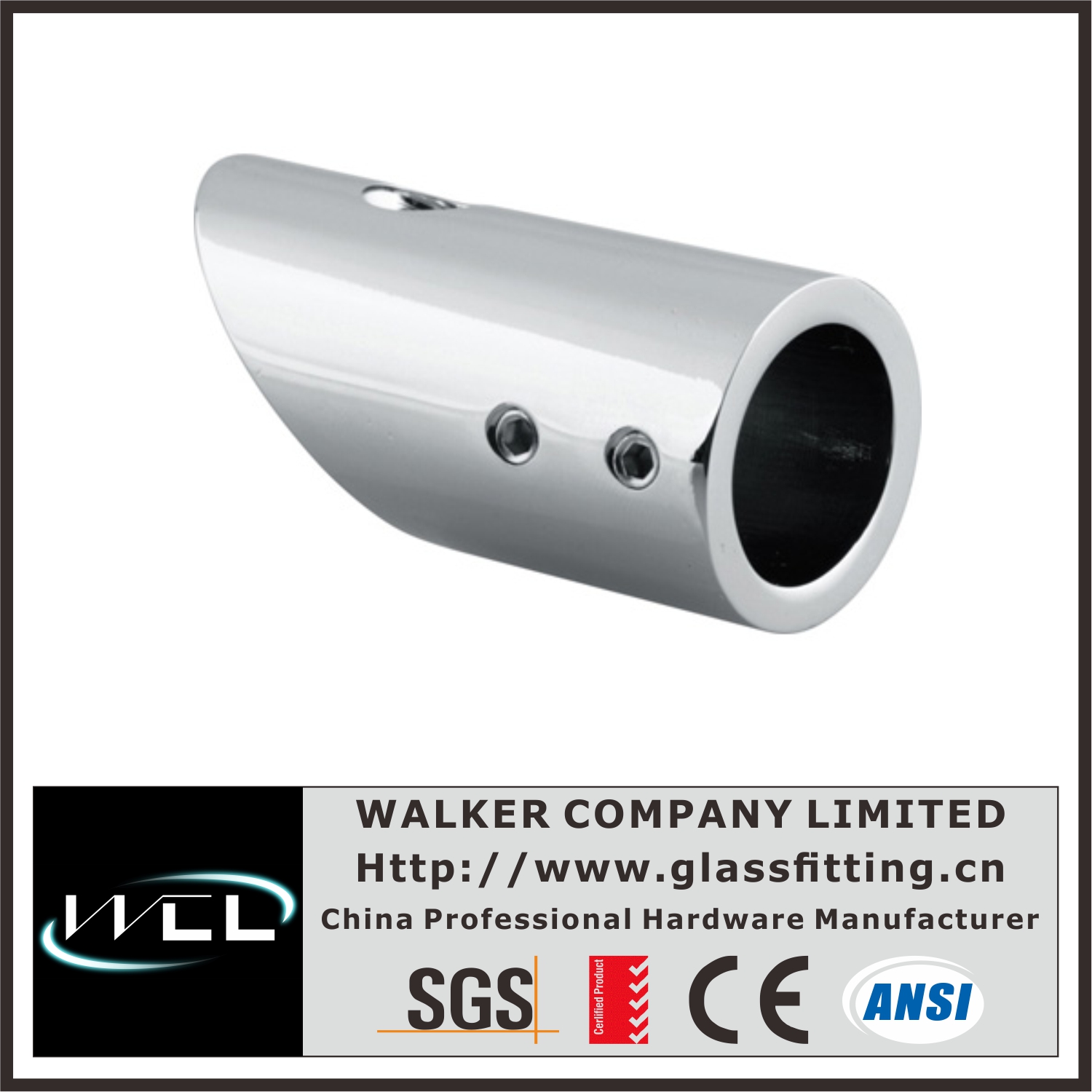

AC009 45 Degree Mitered Round Support Bar Bracket
Model No.: AC00945 Degree Mitered Round Support Bar Bracket, Available in Several Beautiful Finishes, Use Monolithic Tempered Glass, Three Year Warranty
| Material | Brass |
| Glass Thickness | 1/4" to 1/2" (6 to 12 mm) |
| Gasket | / |
| Includes | Wall Mount Set Screws |
| Glass | Use Monolithic Tempered Glass, No Glass Fabrication Required |
A Great Solution for Inline Enclosures Requiring Fixed Panel Support When a Header is Not Desired
Can Replace a Fitting on the End of a Stock Support Bar
45 and 22-1/2 Degree Miters Available
Attaches to Wall Easily Via a Screw-Mounted Stud
Available in Many Popular Finishes, with Custom Finishes Available
Use Monolithic Tempered Glass
Factory Standard Size:
| SIZE | A | B |
| AC009A | Dia19 | Dia27 |
| AC009B | Dia22 | Dia28 |
| AC009C | Dia25 | Dia32 |
Important Notes:
These Mitered Support Bar Wall Mount Brackets are designed to attach to the wall using the included screw.
These Brackets are perfect for inline 180-degree shower enclosures and fit on the end of our Support Bars.
When run at an angle toward an adjacent wall, they will fit flush due to their mitered ends and secure the fixed panel.
Custom Sizes or Finishes are Available on Request. Contact Walker Sales Department.
| Catalog Number | AC009 |
|---|---|
| Material | Brass |
| Color (Finish) | Mirror, Satin Nickel, Matte Black and Gold |
| Size | Factory Standard Size |
| Package | Standard Export Package |
| Ship Via | Can ship DHL, By sea and By air |
| Testing | Salt fog resistance for surface >/= 48 hours |
| Minimum Order | 1 Each (Special color:200 Nos) |
