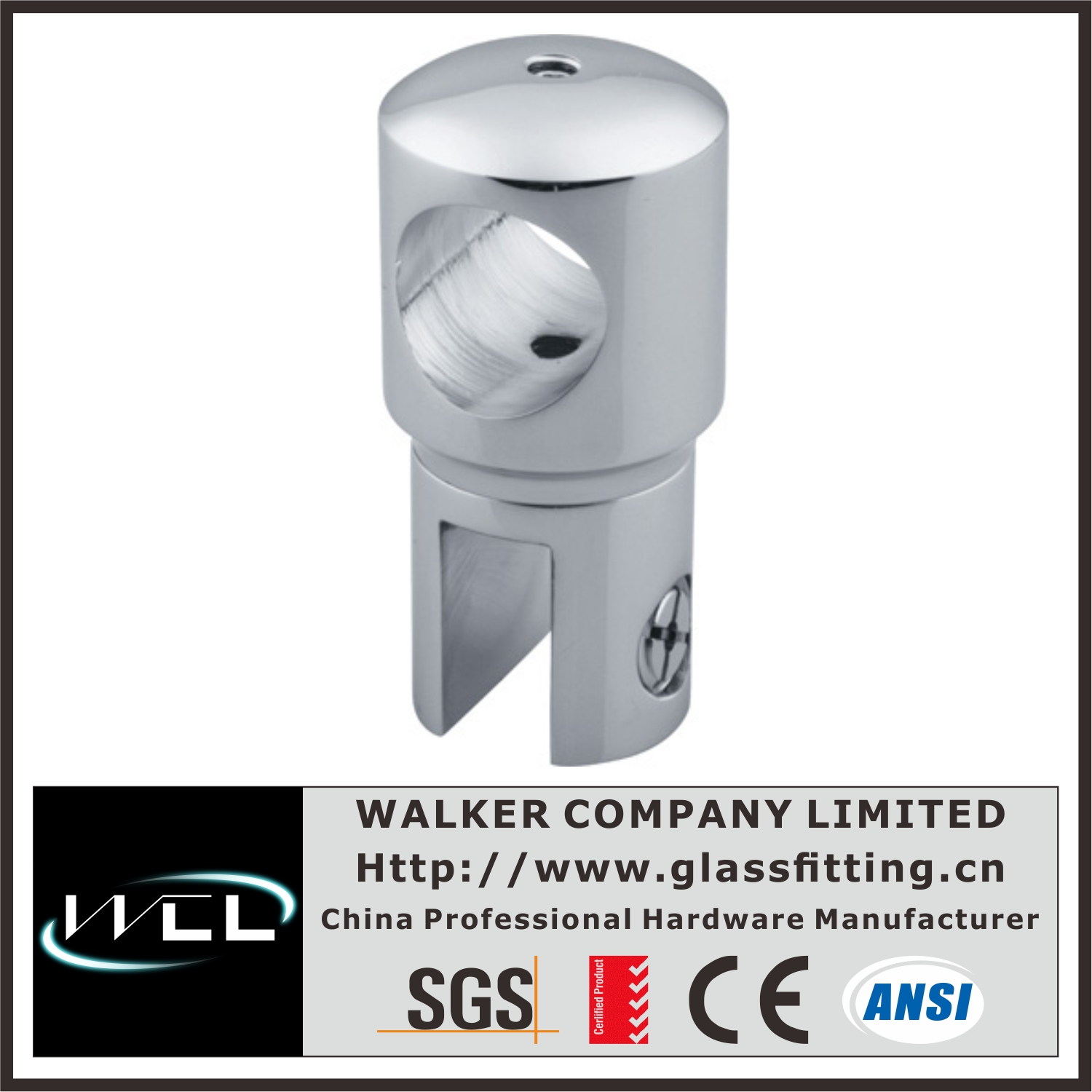

AC003 Standard Round Support Bar Movable Bracket
Model No.: AC003Standard Round Support Bar Movable Bracket, Available in Several Beautiful Finishes, Use Monolithic Tempered Glass, Three Year Warranty
| Material | Brass |
| Glass Thickness | 1/4" to 1/2" (6 to 12 mm) |
| Gasket | / |
| Includes | Set Screws |
| Glass | Use Monolithic Tempered Glass, No Glass Fabrication Required |
Bar Fits Through Bracket for Field Adjustments
Easy-to-Install
Use Monolithic Tempered Glass
Factory Standard Size:
| SIZE | A | B | C |
| AC003A | Dia19 | Dia25 | 58 |
| AC003B | Dia22 | Dia25 | 61 |
| AC003C | Dia25 | Dia25 | 65 |
Important Notes:
This Walker Movable Bracket for 1/4" to 1/2" (6 to 12 mm) Glass is installed on the top of the glass when using the support bars.
These Brackets are available in all the standard designer finishes to match other Shower Door Hardware.
Custom Sizes or Finishes are Available on Request. Contact Walker Sales Department.
| Catalog Number | AC003 |
|---|---|
| Material | Brass |
| Color (Finish) | Mirror, Satin Nickel, Matte Black and Gold |
| Size | Factory Standard Size |
| Package | Standard Export Package |
| Ship Via | Can ship DHL, By sea and By air |
| Testing | Salt fog resistance for surface >/= 48 hours |
| Minimum Order | 1 Each (Special color:200 Nos) |
