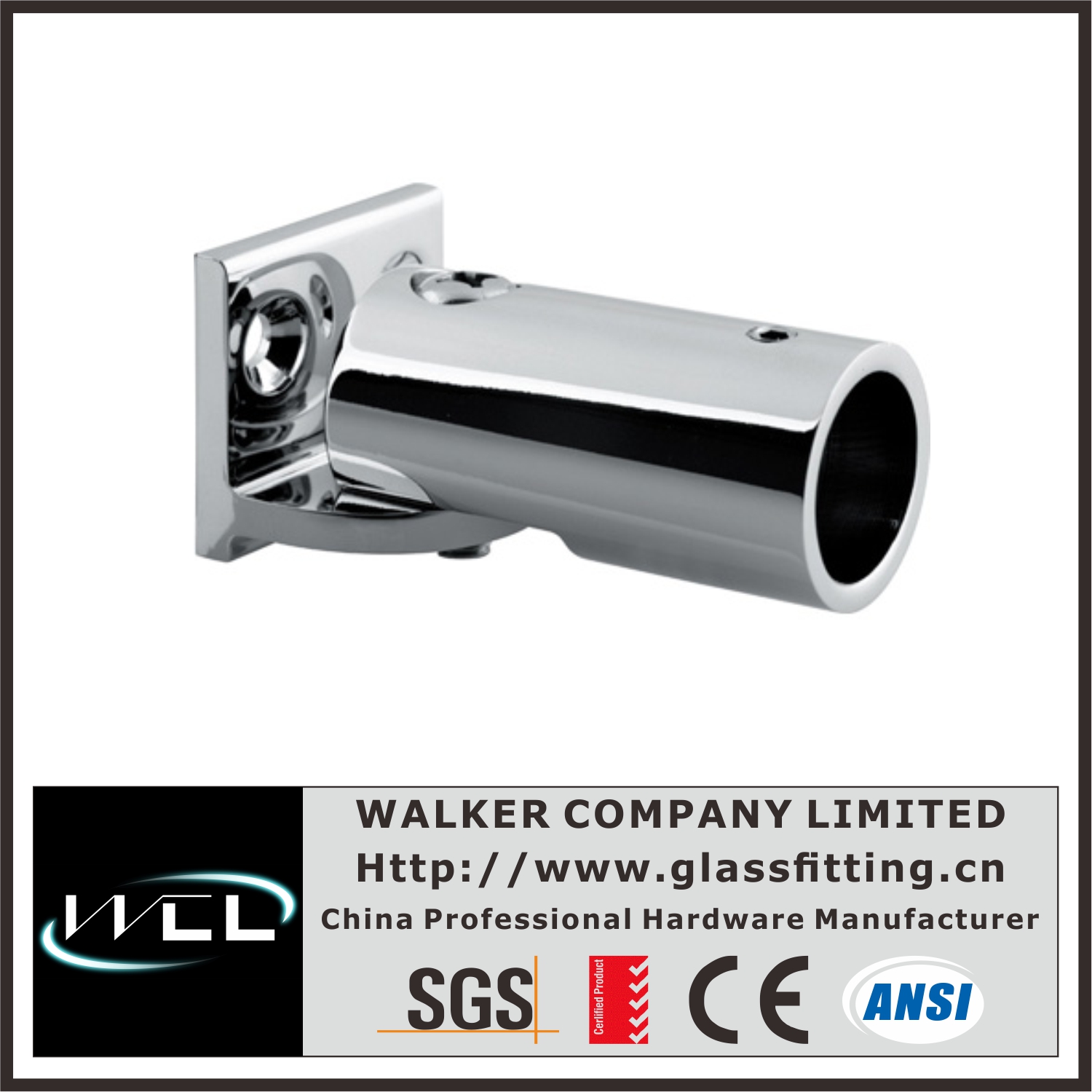

AC011 Adjustable Wall Mount Bracket for Round Support Bar
Model No.: AC011Adjustable Wall Mount Bracket for Round Support Bar, Available in Several Beautiful Finishes, Use Monolithic Tempered Glass, Three Year Warranty
| Material | Brass |
| Glass Thickness | 1/4" to 1/2" (6 to 12 mm) |
| Gasket | / |
| Includes | Wall Mount Set Screws |
| Glass | Use Monolithic Tempered Glass, No Glass Fabrication Required |
Adjustable to Any Angle from the Wall to the Fixed Panel
Round Tubing Matches Geometry of Many Popular Walker Shower Hinges
Provides Fixed Panel Support for Enclosures Not Going to the Ceiling
No Hole Drilling Required in Glass
Factory Standard Size:
| SIZE | A | B |
| AC011 | Dia19 | Dia25 |
Important Notes:
This Walker Adjustable Wall Mount Bracket for Round Support Bar is designed to be used with all of our Walker Support Bars for Glass-to-Glass or Wall-to-Glass applications.
They are available in many finishes which match our most popular Walker Frameless Shower Door Hardware.
Adjustable Wall Mount Brackets swivel to any angle.
Custom Sizes or Finishes are Available on Request. Contact Walker Sales Department.
| Catalog Number | AC011 |
|---|---|
| Material | Brass |
| Color (Finish) | Mirror, Satin Nickel, Matte Black and Gold |
| Size | Factory Standard Size |
| Package | Standard Export Package |
| Ship Via | Can ship DHL, By sea and By air |
| Testing | Salt fog resistance for surface >/= 48 hours |
| Minimum Order | 1 Each (Special color:200 Nos) |
