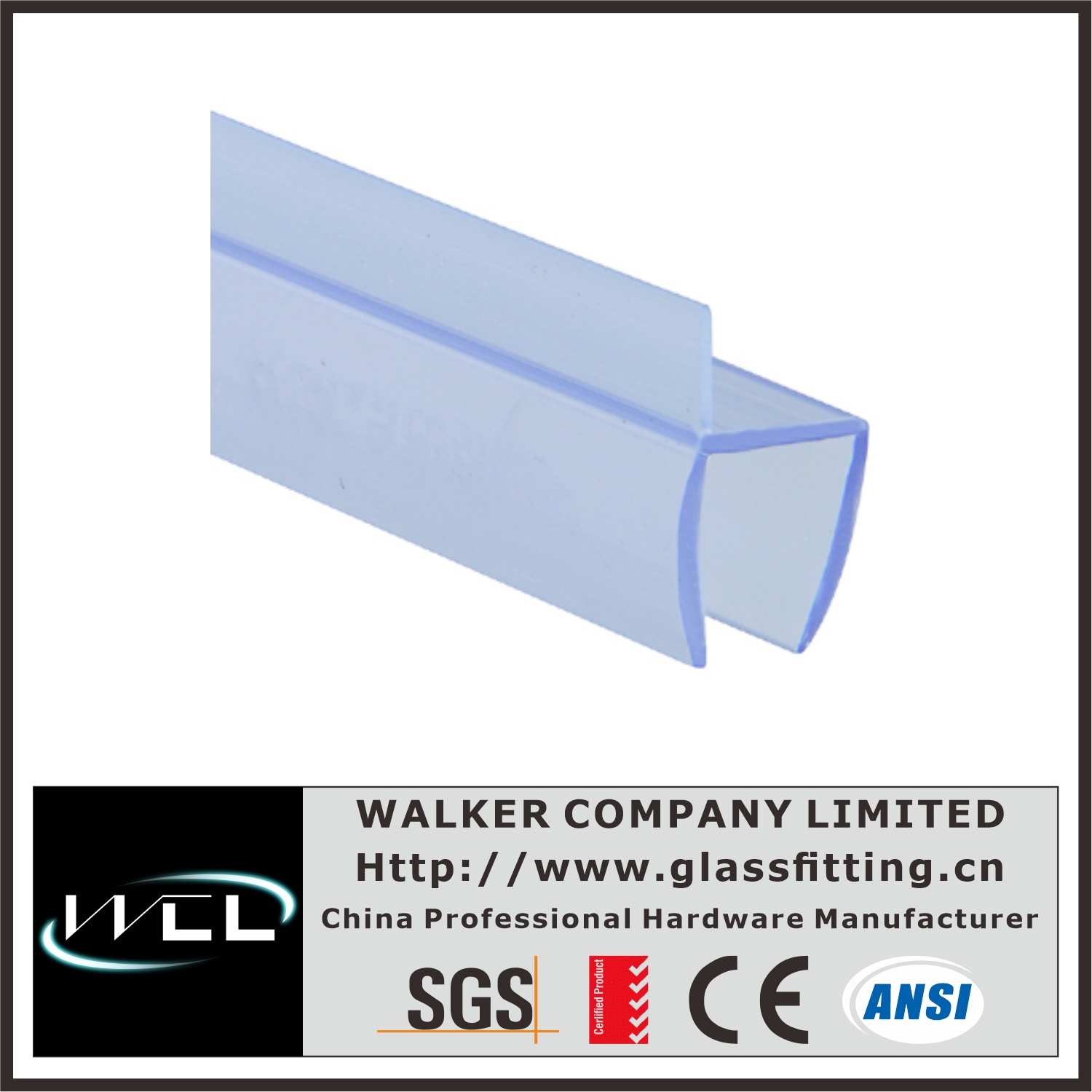

SG258 'Y' Jamb with Soft Leg Fits 6mm to 12mm Glass
Model No.: SG258This WALKER 'Y' Jamb Seal with Soft Leg is for use on 180 degree inline glass-to-glass applications. Snaps onto the fixed panel with the lip on the strike side. The 'U' portion is rigid, and the single leg is soft to cushion the closing. Snaps onto fixed panel inline with the door.
Features
1. Use Monolithic Tempered Glass.
2. Soft Vinyl Cushions Door Closure.
3. Snaps Easily Into Place.
4. Suggested Gap: 3/16" (4.7 mm).
More Details
This WALKER 'Y' Jamb Seal with Soft Leg is for use on 180 degree inline glass-to-glass applications. Snaps onto the fixed panel with the lip on the strike side. The 'U' portion is rigid, and the single leg is soft to cushion the closing. Snaps onto fixed panel inline with the door.
| Glass Thickness | 6mm, and 10mm |
| Length | 2000mm, 2200mm and 2500mm |
| Any length is available | |
| Testing | With UV |
| Cold-Resistant | |
| Strong Intensity | |
| Aging Resistance |
| Catalog Number | SG258 |
|---|---|
| Material | PVC |
| Color (Finish) | Transparent (Clear) |
| Size | 2000mm, 2200mm and 2500mm |
| Package | Standard Export Package |
| Ship Via | Can ship DHL, By sea and By air |
| Testing | With UV, Cold-Resistant, Strong Intensity and Aging Resistance |
| Minimum Order | 1 Each (Special color:200 Nos) |
