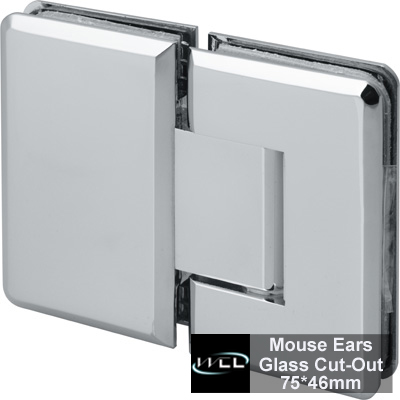

BSH3002 Mycro 180 Degree Glass-to-Glass Mount Hinge
Model No.: BSH3002Mycro Mount Hinge is Mouse Ears Cut-Out for Ease of Glass Fabrication, Poseidon Series Brass Shower Door Hinge, Bevel Edge and Half-arc Angle Corner Style, Available in Several Beautiful Finishes, Use Monolithic Tempered Glass, Three Year Warranty
| Capacity | 25kgs(55lbs) / 2 hinges |
| Glass Thickness | 1/4" (6 mm) Tempered Safety Glass |
| Hinge Swings | 90 degree in and 90 degree Out |
| Closing Type | Self-Centering when within 25 degree of Closed Position |
| Gasket | Black Rubber, Pvc, Asbestos is Available |
| Includes | Gaskets, Screws, and Glass Fabrication Dimensions |
The Poseidon Series of professional Myrco Mount Hinges is able to accommodate 1/4" (6 mm) glass.
Made of brass with all moving parts (pins and springs) in stainless steel.

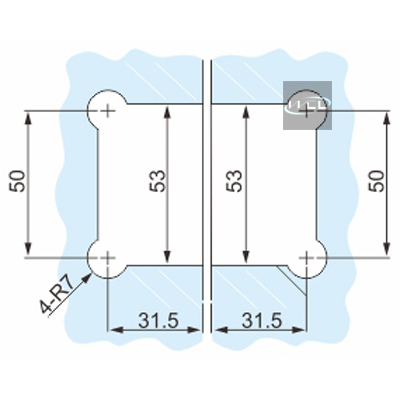

Mouse Ears Cut-Out for Ease of Glass Fabrication.
Using two hinges with 1/4" glass (6 mm) the hinge will hold up to 55 lbs. (25 kg) with a maximum door width of 27" (700 mm).
180 Degree Glass-to-Glass Standard Model (Factory Set for Standard Closing Position)
Custom Finishes are Available on Request. Contact Walker Sales Department.
| Catalog Number | BSH3002 |
|---|---|
| Material | Brass |
| Color (Finish) | Chrome, Satin Nickel, Oil Rubbed Bronze and Gold |
| Size | 75*46mm |
| Package | Standard Export Package |
| Ship Via | Can ship DHL, By sea and By air |
| Testing | Salt fog resistance for surface >/= 48 hours, Turning times of the spring: 50,000 times. |
| Minimum Order | 1 Each (Special color:200 Nos) |
