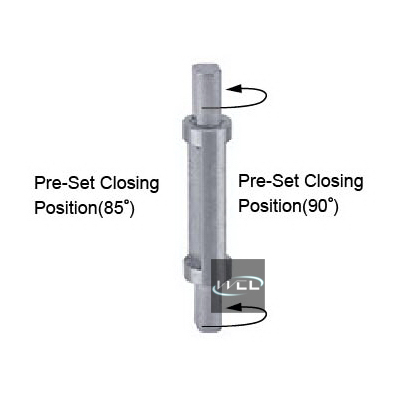

STANDARD REVERSIBLE PIVOT PIN: Each Poseidon Heavy Duty Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 degree. The opposite side of the Pin is marked 85 degree. Poseidon Heavy Duty Hinges come with the 90 degree side activated. Pre-Set Models come with the Pin pre-set for 85 degree (5 degree tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.

CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90 degree. If the standard 5 degree Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degree).

The Poseidon Heavy Duty Series of professional Hinges is able to accommodate 3/8" (10 mm) to 1/2" (12 mm) glass.
Made of brass with all moving parts (pins and springs) in stainless steel.

Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).

Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum door width of 36" (914 mm).

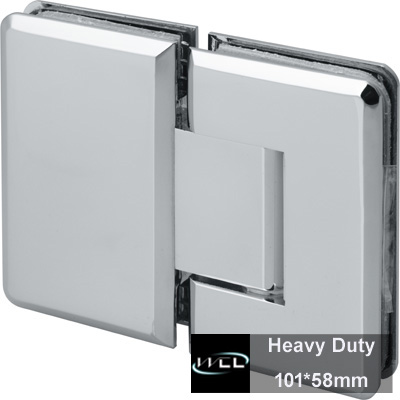

180 Degree Glass-to-Glass Heavy Duty Model (Factory Set for Standard Closing Position)

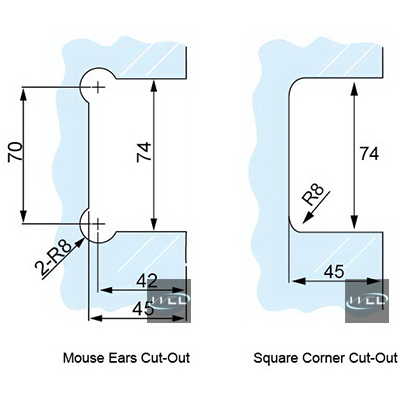

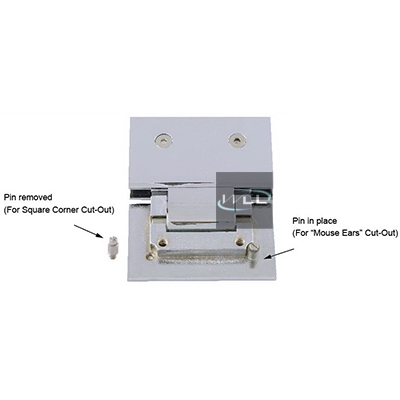

Walker Poseidon Heavy Duty Hinges are the solution for wider, heavier doors that traditional hinges are not strong enough to support. Two strategically placed steel pins inside the hinge provide template options and satisfy two schools of thought for mounting shower door hinges. For the safety of "mouse-ears" type cut-outs, the two steel pins should be left in place. This allows the Poseidon Heavy Duty Hinge to be used with its own Walker "mouse-ears" cut-out. On the other hand, to enable increased adjustability, the two pins can be removed. This allows the Poseidon Heavy Duty Hinge to fit it's own Walker rectangular shaped, square cornered cut-out. In some cases, it will also fit competitive rectangular shaped, square cornered cut-outs.

Custom Finishes are Available on Request. Contact Walker Sales Department.
