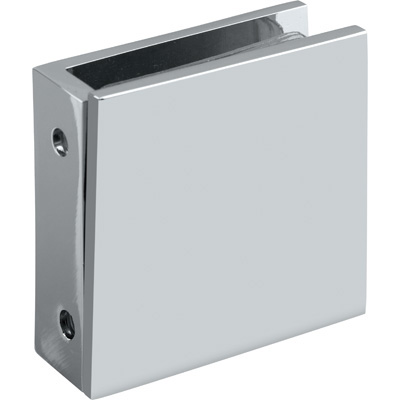

BC201(50x50) Square Corner Movable Wall Mounted Transom Heavy Duty Glass Clamp

Model No.: BC201(50x50)

Hera Series Glass Clamp, Flat Edge and Right Angle Corner Style, Available in Several Beautiful Finishes, Use Monolithic Tempered Glass, Three Year Warranty



Glass Thickness 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Gasket Black Rubber, Pvc, Asbestos is Available
Includes Appropriate Mounting Screws and One set of Clear Gaskets



The Hera Series Heavy Duty Clamp of professional clamp is able to accommodate 3/8" (10 mm) to 1/2" (12 mm) glass.
Made of brass with all moving parts (pins and springs) in stainless steel.

Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures.

A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look.

Glass Fabrication Required to Accommodate.

BC201(50x50) Square Corner Movable Wall Mounted Transom Heavy Duty Glass Clamp mount directly to the wall, ceiling or floor to secure vertical fixed glass panels. Clearance between the glass and wall is 3/16" (5 mm). Clear silicone can be used to provide a clean, water-tight seal.

Factory Set for Standard Closing Position.

Additional Product Information:

Our brass clamps are designed to secure glass panels in contemporary shower enclosures. They assist in maintaining the frameless appearance, and provide a clean looking alternative to U-Channel. All Clamps feature brass construction and a variety of finishes to match our complete line of Shower Door Hinges.

Custom Finishes are Available on Request. Contact Walker Sales Department.

Catalog Number BC201(50x50)
Material Brass
Color (Finish) Chrome, Satin Nickel, Oil Rubbed Bronze and Gold
Size 50*50mm
Package Standard Export Package
Ship Via Can ship DHL, By sea and By air
Testing Salt fog resistance for surface >/= 48 hours
Minimum Order 1 Each (Special color:200 Nos)
