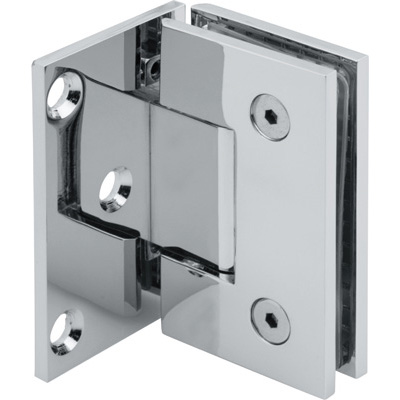

BH2001 Wall Mount Full Back Plate Standard Hinge
Model No.: BH2001Hera Series Brass Shower Door Hinge, Flat Edge and Right Angle Corner Style, Available in Several Beautiful Finishes, Use Monolithic Tempered Glass, Three Year Warranty
| Capacity | 36kgs(80lbs) / 2 hinges or 54kgs(120lbs) / 3 hinges |
| Glass Thickness | 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass |
| Hinge Swings | 90 degree in and 90 degree Out |
| Closing Type | Self-Centering when within 15 degree of Closed Position |
| Gasket | Black Rubber, Pvc, Asbestos is Available |
| Includes | Gaskets, Screws, and Glass Fabrication Dimensions |
The Hera Series of professional Hinges is able to accommodate 5/16" (8 mm) to 1/2" (12 mm) glass.
Made of brass with all moving parts (pins and springs) in stainless steel.
Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).
Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).
Wall Mount Full Back Plate Standard Model (Factory Set for Standard Closing Position)
Custom Finishes are Available on Request. Contact Walker Sales Department.
| Catalog Number | BH2001 |
|---|---|
| Material | Brass + 201 Stainless Steel Back Plate |
| Color (Finish) | Chrome, Satin Nickel, Oil Rubbed Bronze and Gold |
| Size | 90*55mm |
| Package | Standard Export Package |
| Ship Via | Can ship DHL, By sea and By air |
| Testing | Salt fog resistance for surface >/= 48 hours, Turning times of the spring: 50,000 times. |
| Minimum Order | 1 Each (Special color:200 Nos) |
